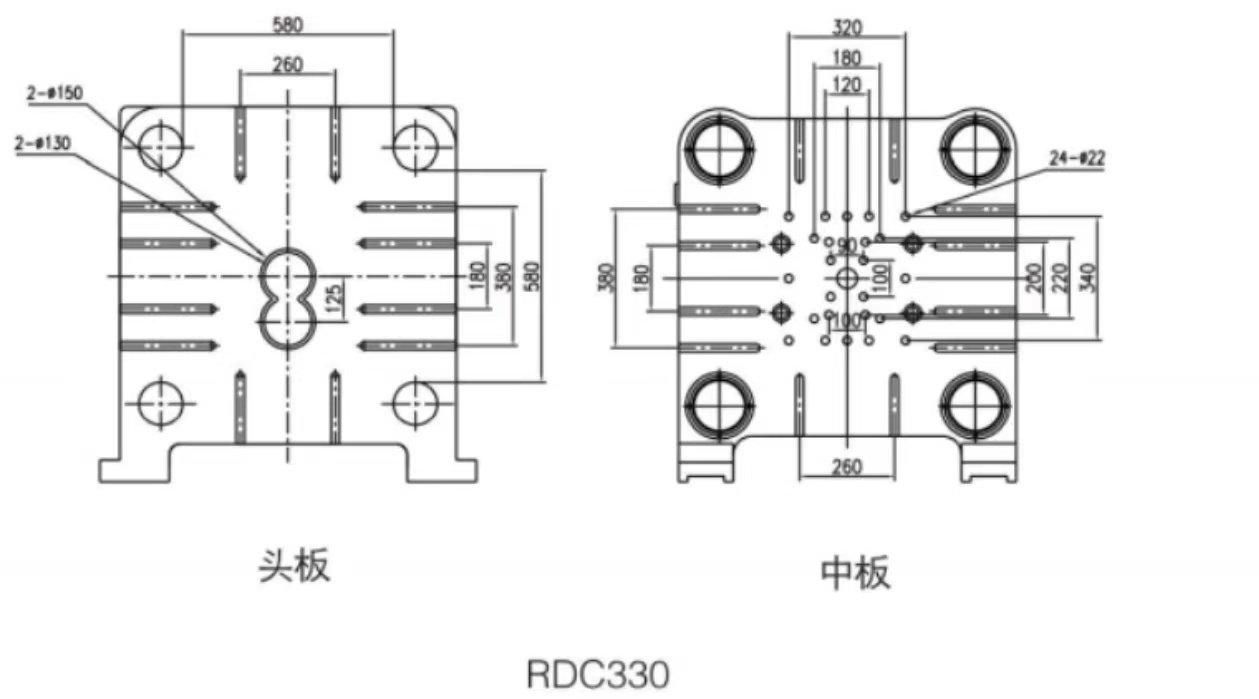

RDC330
Specializing in the production of "Ruida" brand cold chamber die casting machines, hot chamber die casting machines and their peripheral equipment, which are widely used in automobiles, motorcycles, electronics, communications, gifts, toys and other fields.
Category:
RDC series
| 项 目 Item | Unit | RDC330 | ||
| 锁模力 Die Locking Force |
KN | 3300 | ||
| 锁模行程 Die Stroke |
mm | 460 | ||
| 模具厚度(最小-最大) Die Thickness(Min-Max) |
mm | 250-660 | ||
| 模板尺码(水平×垂直) Die Dimension |
mm | 920×920 | ||
| 导柱内距 Tie-bar inner Spacing(V×H) |
mm | 580×580 | ||
| 导柱直径 Tie Bar Diameter |
mm | 120 | ||
| 压射力(增压) Injection Force |
KN | 335 | ||
| 射料行程 Plunger Stroke |
mm | 440 | ||
| 冲头直径 Plunger Tip Diameter |
mm | 50 | 60 | 70 |
| 射料量(铝) Shot Weight(AL) |
Kg(AL) | 1.6 | 2.4 | 3.2 |
| 射料量(镁) Shot Weight(Mg) |
Kg(Mg) | 1.1 | 1.6 | 2.1 |
| 铸造压力(增压) Specific Pressure |
Mpa | 171 | 119 | 87 |
| 最大投影面积(40Mpa) Projecting Area |
c㎡ | 825 | ||
| 压射位置 Injection Portposition |
mm | 0,-125 | ||
| 冲头推出距离 Injection Stoke |
mm | 180 | ||
| 压室法兰直径 Injection Stroke |
mm | 110 | ||
| 压室法兰凸出定板高度 Over Height of Flange |
mm | 12 | ||
| 顶出力 Ejection Force |
KN | 150 | ||
| 顶出行程 Ejection Length |
mm | 105 | ||
| 系统工作压力 Hydraulic Pressure |
Mpa | 14 | ||
| 电机功率 Electric Motor Capacity |
KW | 18.5 | ||
| 油箱容量 Volume of Oil |
L | 600 | ||
| 机身重量 Machine Weiight |
ton | 12 | ||
| 机器外型尺寸(长×宽×高) OverAllDimensions(L×W×H) |
m | 6×1.4×2.5 | ||
