Product Center
Specializing in the production of "Ruida" cold chamber die casting machines, hot chamber die casting machines and their peripheral equipment...
Item | unit |
RDH118F |
|
Power |
KN |
1180 |
|
Kinmo process |
MM |
255 |
|
Top output |
KN |
70 |
|
Departure process |
MM |
70 |
|
Die thickness |
MM |
150-450 |
|

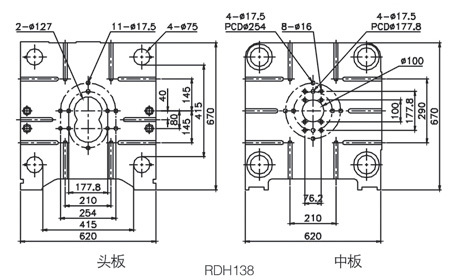

Template size |
MM |
620×670 |
|
Tie-bar Inner Spacing(V×H) |
MM |
415×415 |
|
Tie Bar Diameter |
MM |
75 |
|
Injection Port Position |
MM |
0,-80 |
|
Injection Stroke |
MM |
150 |
|
Traverse Stroke |
MM |
200 |
|
Injection Fore |
KN |
82.5 |
|
Plunger Tip Diameter |
MM |
60 |
|
Specific Presure |
Mpa |
29 |
|
Shot weigh(Zn) |
kg(Zn) |
2.1 |
|
Hydraulic Pressure |
Mpa |
10.5 |
|
Electric Motor Capacity |
KW |
11 |
|
Volume of Crucible(Zn) |
L/kg(Zn) |
55/360 |
|
Volume of Oil |
L |
300 |
|
Machine Weight |
TON |
6 |
|
Over All Dimensions |
m(L×W×H) |
4.51×1.51×2.3 |
