Specializing in the production of "Ruida" cold chamber die casting machines, hot chamber die casting machines and their peripheral equipment...

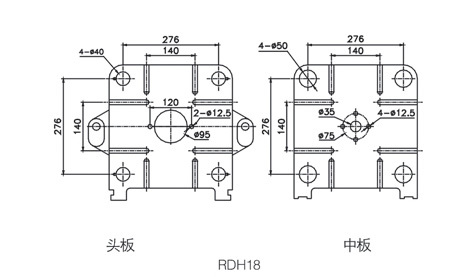

RDH18N
Specializing in the production of "Ruida" brand cold chamber die casting machines, hot chamber die casting machines and their peripheral equipment, which are widely used in automobiles, motorcycles, electronics, communications, gifts, toys and other fields.
Category:
RDH-N series standard type
| Item | Unit | RDH18 | |
| Die Locking Force | KN | 180 | |
| Die Stroke | MM | 150 | |
| Ejection Fore | KN | / | |
| Ejection Stroke | MM | / | |
| Die Thickness(Min~Max) | MM | 100-300 | |
| Die Dimension | MM | 385×360 | |
| Tie-bar Inner Spacing(V×H) | MM | 236×236 | |
| Tie Bar Diameter | MM | 40 | |
| Injection Port Position | MM | / | |
| Injection Stroke | MM | 90 | |
| Traverse Stroke | MM | 150 | |
| Injection Fore | KN | 27 | |
| Plunger Tip Diameter | MM | 35 | |
| Specific Presure | Mpa | 28 | |
| Shot weigh(Zn) | kg(Zn) | 464 | |
| Hydraulic Pressure | Mpa | 7 | |
| Electric Motor Capacity | KW | 5.5 | |
| Volume of Crucible(Zn) | L/kg(Zn) | 20/150 | |
| Volume of Oil | L | 180 | |
| Machine Weight | TON | 1.5 | |
| Over All Dimensions | m(L×W×H) | 2.5×1.2×1.7 | |
